Wichard Marine

Wichard Symmetric Carbin Hook - 120mm Length - 15/32" [02317]

Wichard Symmetric Carbin Hook - 120mm Length - 15/32" [02317]

Regular price $66.99 USD
Regular price $95.10 USD Sale price $66.99 USD
Sale Sold out
Shipping calculated at checkout.

Symmetric Carbin Hook - 120mm Length - 15/32"

Features:

  • Grade 316L stainless steel carbine hooks
  • Symmetrical shape
  • With eye to attach a webbing or a splicing

Applications:

  • For fastening applications

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 2990 / (kg) 1360
  • WLL: (lb) 1580 / (kg) 720
  • Breaking load: (lb) 7930 / (kg) 3600
  • Weight: (lb) 0.505 / (g) 229

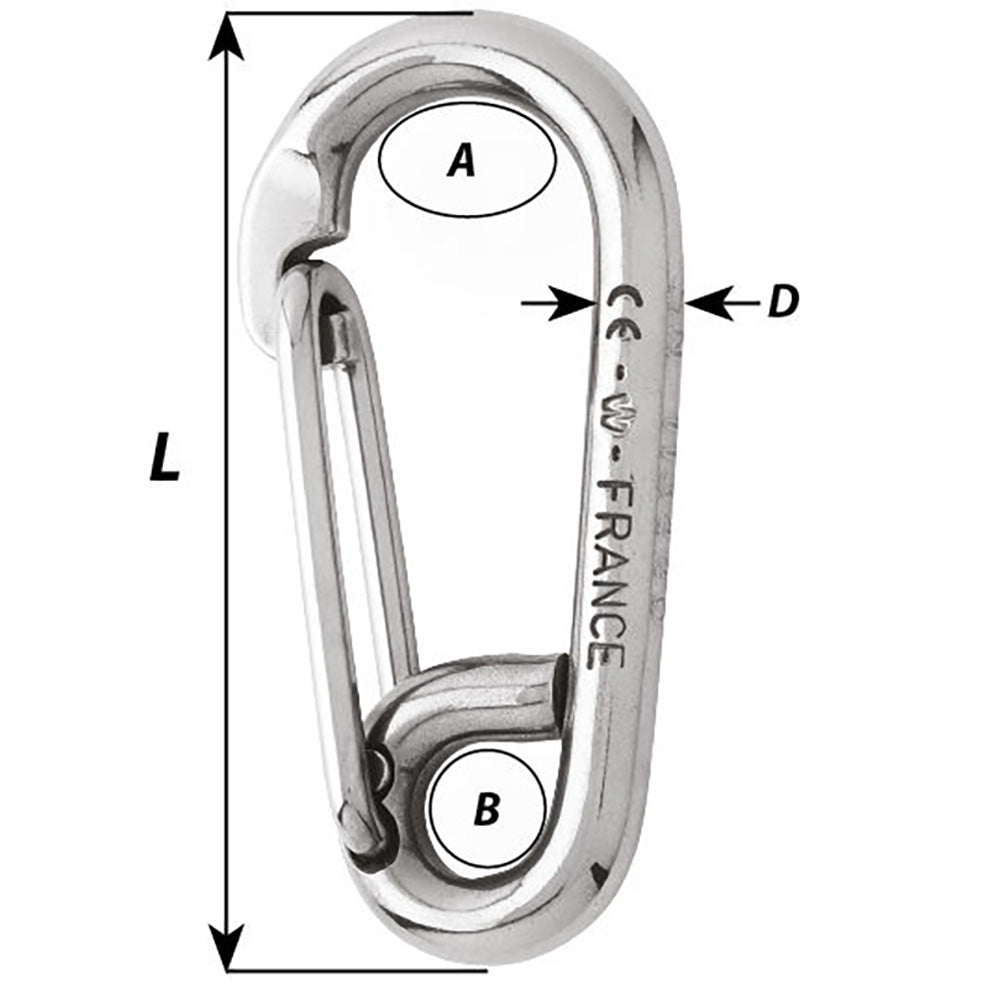

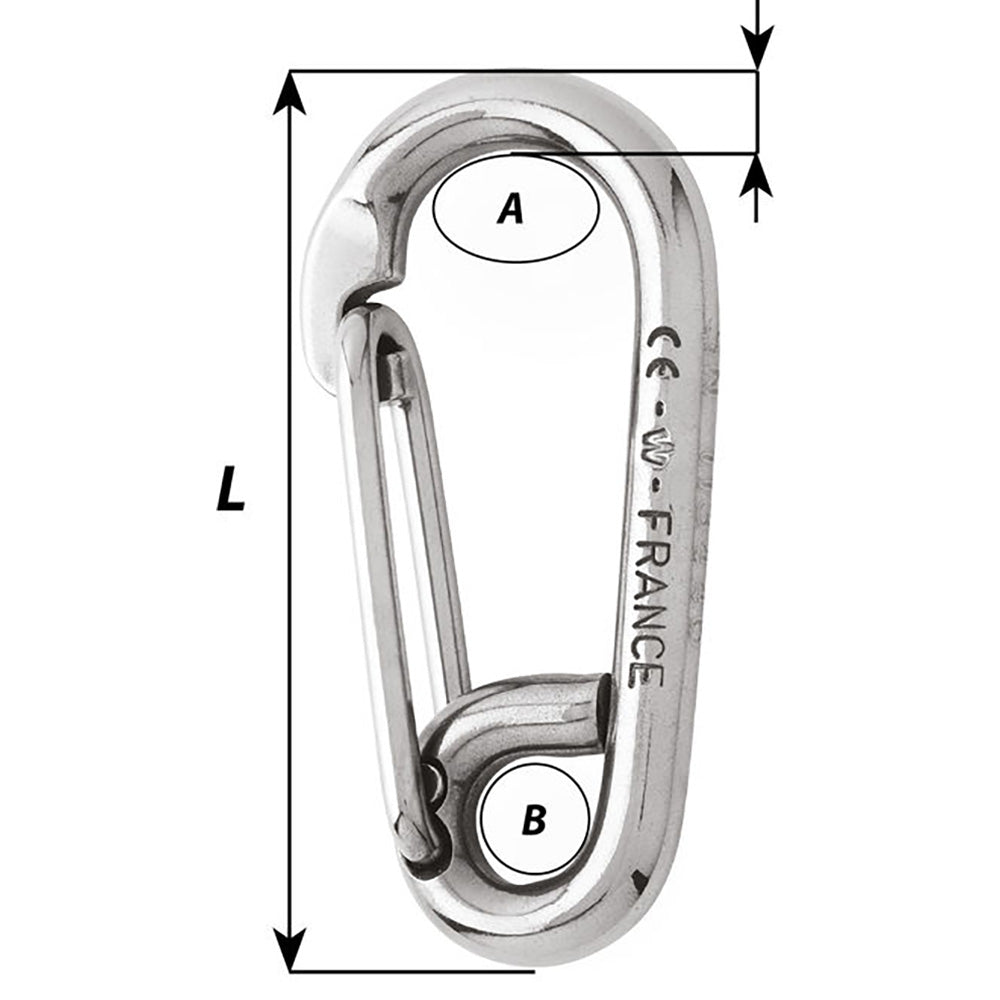

Dimensions:

  • A: (inch) 53/64" / (mm) 21
  • B: (inch) 5/8" / (mm) 16
  • D diameter: (inch) 15/32" / (mm) 12
  • Length: (inch) 4 23/32" / (mm) 120

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
