Wichard Marine

Wichard Self-Locking D Shackle - Diameter 6mm - 1/4" [01203]

Wichard Self-Locking D Shackle - Diameter 6mm - 1/4" [01203]

Regular price $14.99 USD
Regular price $20.90 USD Sale price $14.99 USD
Sale Sold out
Shipping calculated at checkout.

Self-Locking D Shackle - Diameter 6mm - 1/4"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • WLL (lb) 700
  • Breaking load (lb) 3520
  • Weight (lb) 0.049

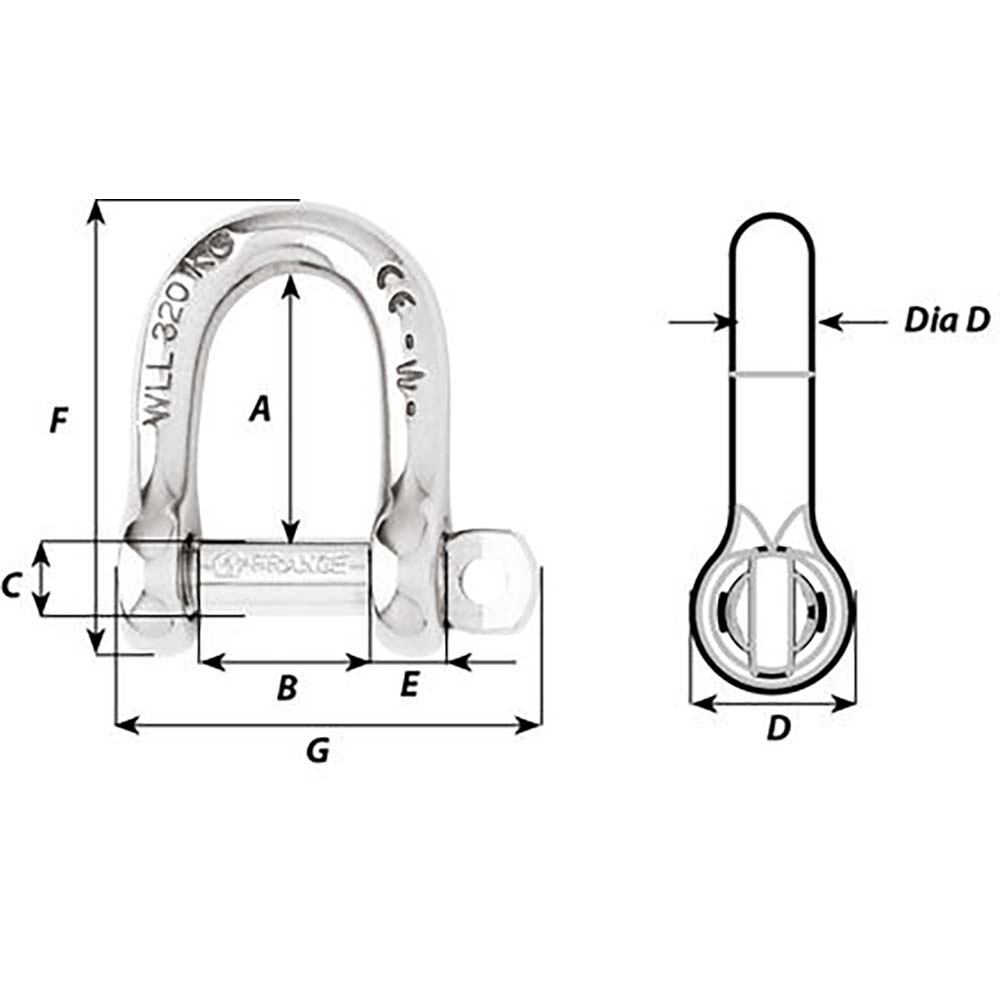

Dimensions (see 2nd image):

  • A (inch) 25/32"
  • B (inch) 15/32"
  • C (inch) 15/64"
  • D (inch) 15/32"
  • D diameter (inch) 15/64"
  • E (inch) 13/64"
  • F (inch) 1-11/32"
  • G (inch) 1-7/32"
