Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [01246]

Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [01246]

Regular price $68.99 USD
Regular price $98.20 USD Sale price $68.99 USD
Sale Sold out
Shipping calculated at checkout.

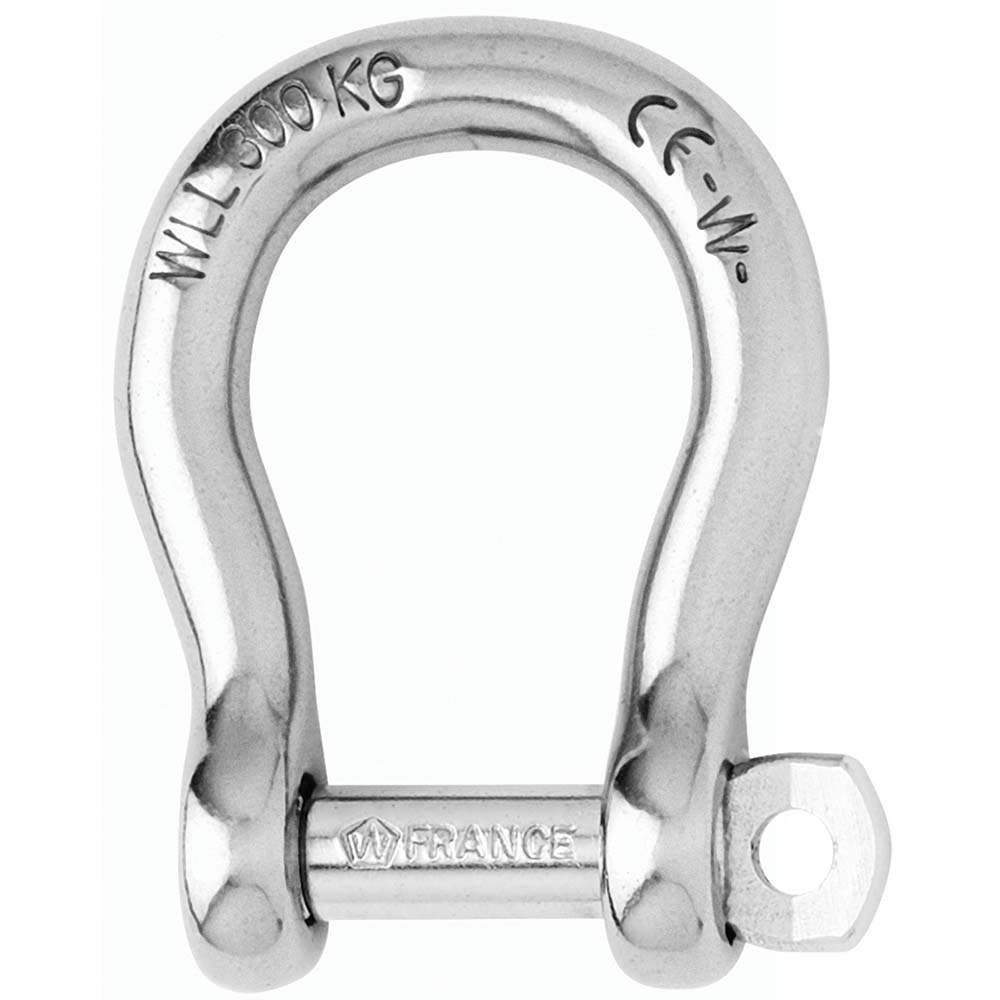

Self-Locking Bow Shackle - Diameter 12mm - 15/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 4580
  • WLL (lb) 2640
  • Breaking load (lb) 13220
  • Weight (lb) 0.514

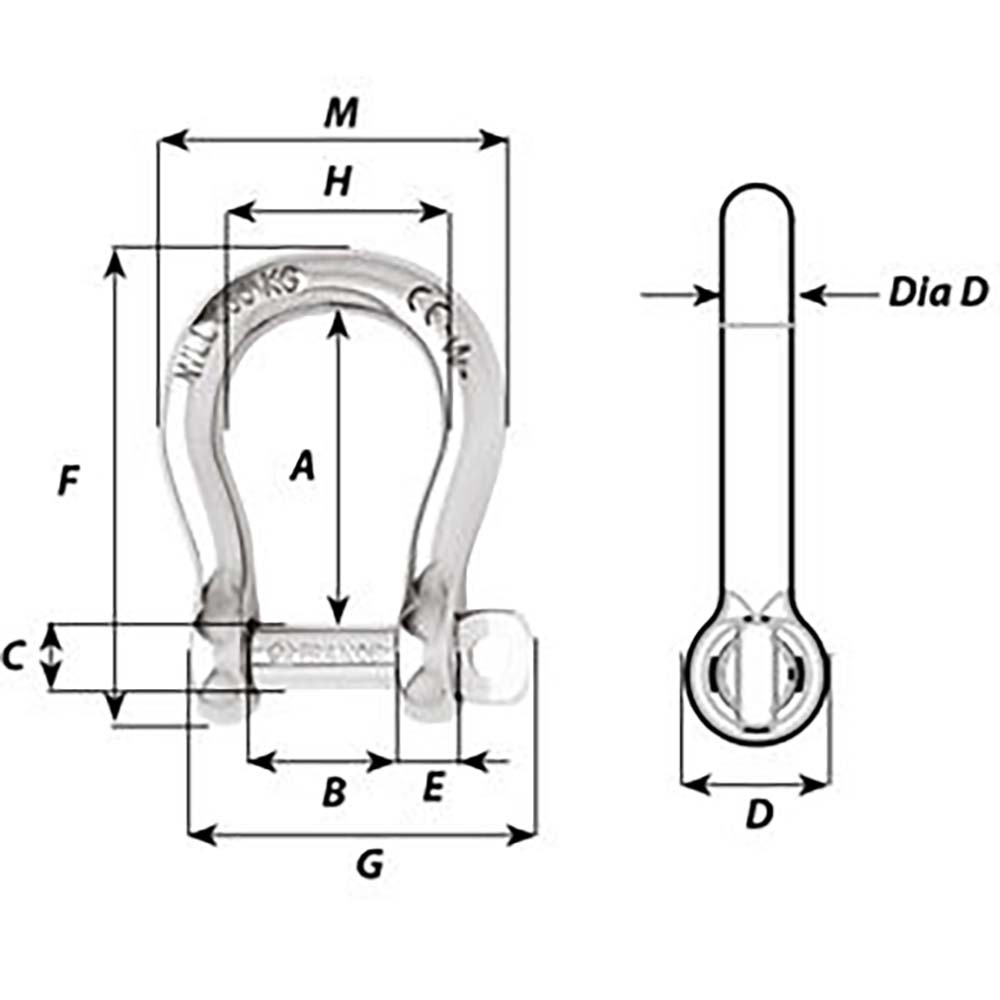

Dimensions (see 2nd image):

  • A (inch) 2-11/64"
  • B (inch) 15/16"
  • C (inch) 15/32"
  • D (inch) 15/16"
  • D diameter (inch) 15/32"
  • E (inch) 25/64"
  • M (inch) 2-31/64"
