Wichard Marine

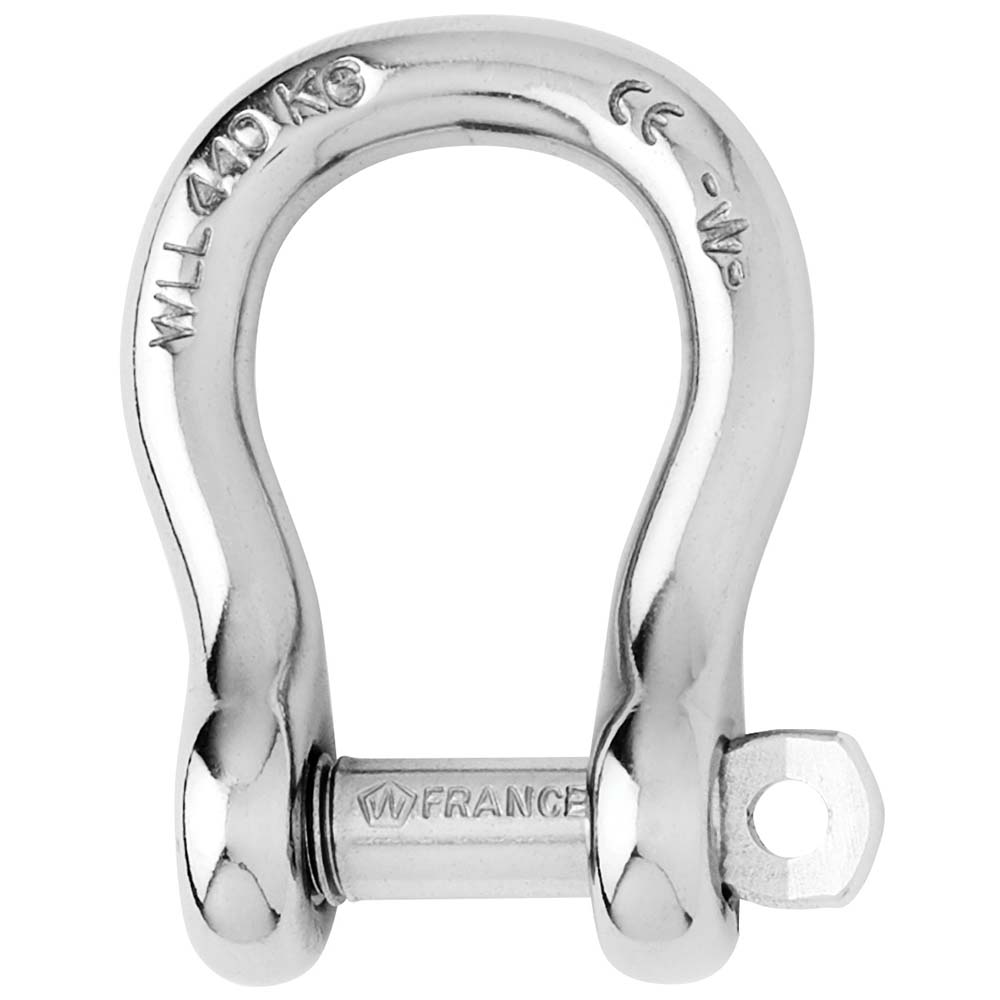

Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Regular price $38.99 USD
Regular price $55.40 USD Sale price $38.99 USD
Sale Sold out
Shipping calculated at checkout.

Captive Pin Bow Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1630
  • Breaking load (lb) 8150
  • Weight (lb) 0.165

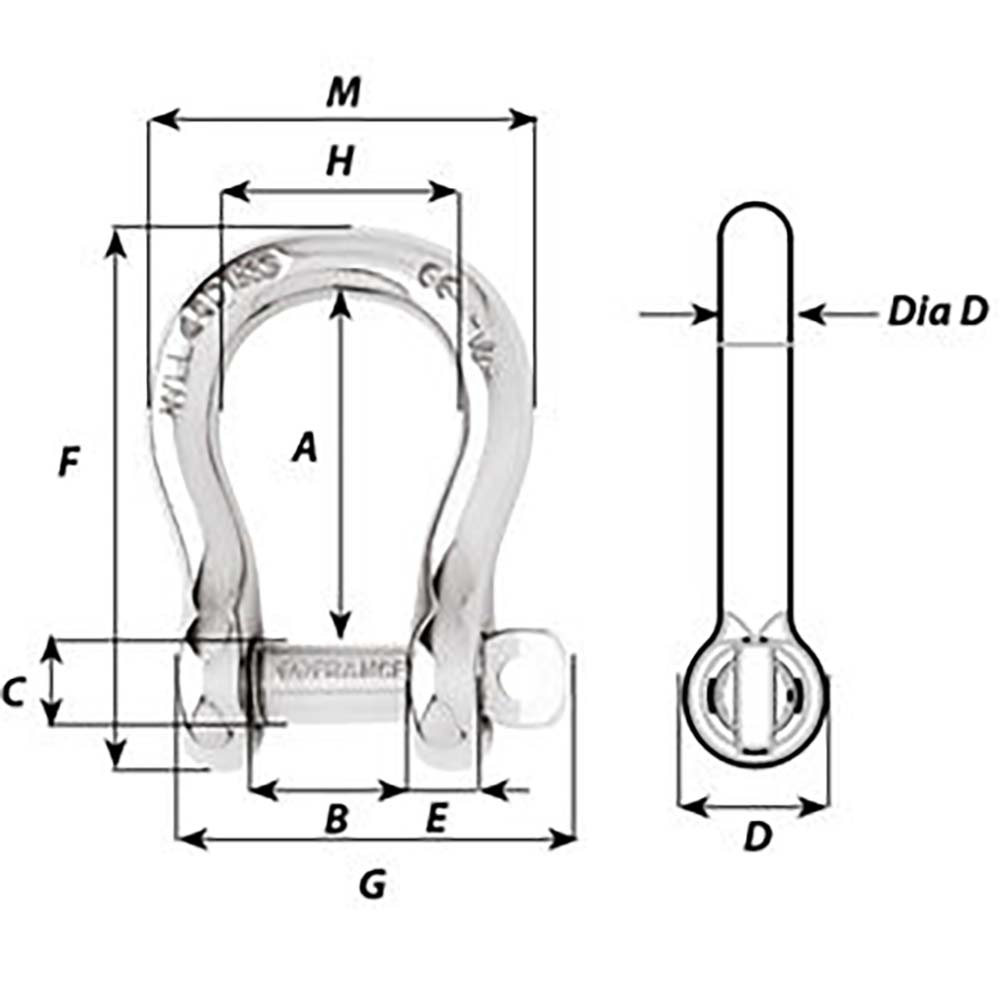

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 45/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • M (inch) 1-21/32"
