HEISE LED Lighting Systems

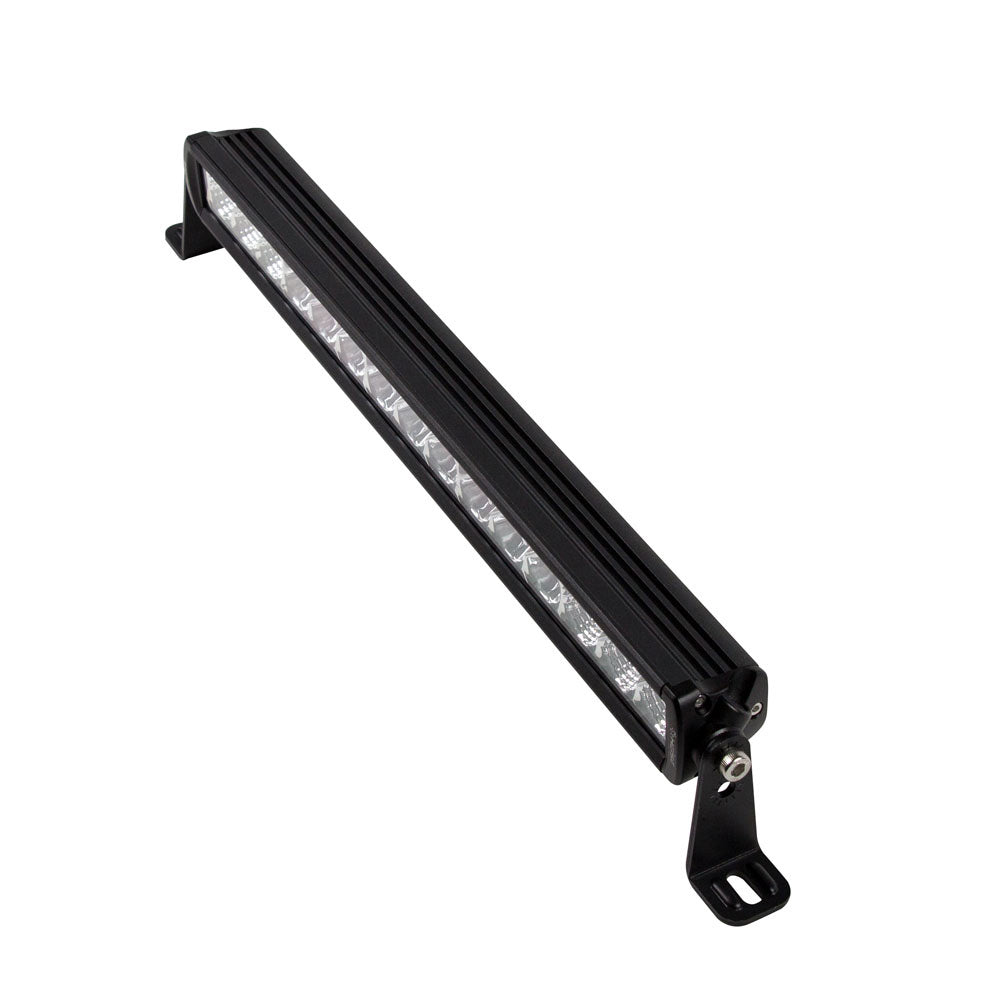

HEISE Single Row Slimline LED Light Bar - 20-1/4" [HE-SL2014]

HEISE Single Row Slimline LED Light Bar - 20-1/4" [HE-SL2014]

Regular price $224.99 USD
Regular price $249.99 USD Sale price $224.99 USD
Sale Sold out
Shipping calculated at checkout.

Single Row Slimline LED Light Bar - 20-1/4"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 45W (15–3W OSRAM LEDs)
  • Raw Lumens: 3600
  • LUX @ 10M: 1280
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 20"
  • Brackets turned outward – 22"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 2.4 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 20.25"
  • Housing: Black
  • Voltage - Input Range (Volts): 10-30v
  • Box Dimensions: 5"H x 6"W x 31"L WT: 4.6 lbs
  • UPC: 086429317363
